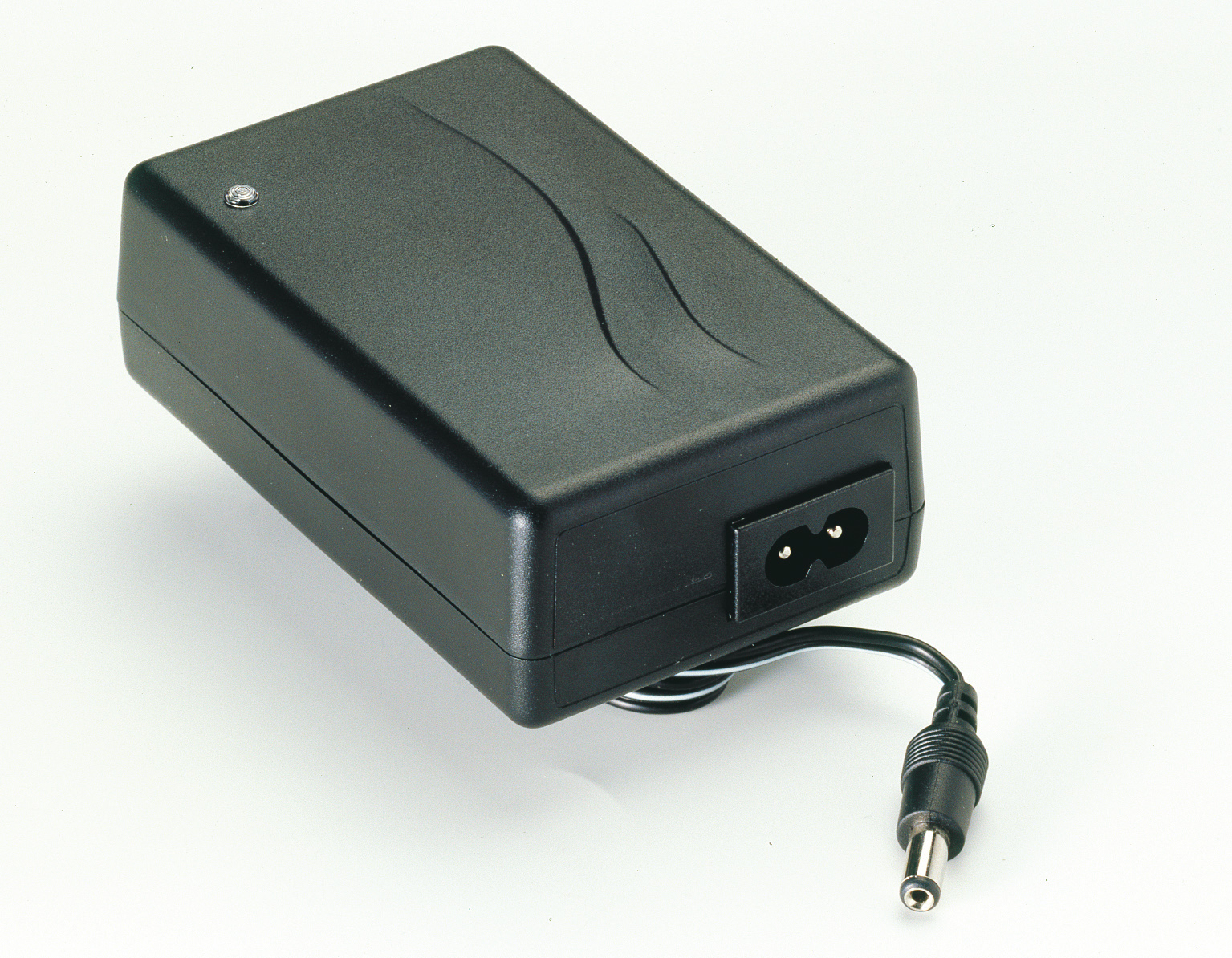

Mascot 2420 5V DC, 27W AC/DC Switch Mode power supply with 2 pin IEC socket
Product code: PDL12420055000
Medical EN 60601-1 UL Approved
£99.44Excl. VAT, per unit£119.33 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description
A desktop 70W AC/DC switch mode power supply with a universal input voltage(90-264VAC), Eco design (ERP-directive) compliant, the power supply is Medically and UL approved including Home Healthcare EN60601-1-11, the input connection is via a 2 pin IEC socket and the out put connection is the snap-lock connector for added flexibility.
Related accessories
£2.512-Pin IEC Mains Lead EU
PDL1C10016
£4.022-Pin IEC Mains Lead Round 16Amp SA
PDL1C19003
£2.782-Pin IEC Mains Lead US
PDL1C05006
£2.682-Pin IEC Mains Lead AU
PDL1C13007
£1.28Snap-lock Connector 2.5mm Chassis
PDL13617
£1.28Snap-lock Connector 2.1mm Chassis
PDL13630
£2.82Bracket PDL1201970
PDL1201970
£2.772-Pin IEC Mains Lead UK
PDL1C80002R
Product Specification
- Battery Charger Type
- Desktop
- Input Connections
- 2 pin IEC Socket
- Input Voltage
- 90-264V AC 50/60Hz
- Ip67
- On Request
- Maximum Power
- 27W
- Maximum Power Range
- 10-30W
- Medically Certified
- Yes
- Medical Approval Number
- EN60601-1 3.1ed
- Model
- 2420
- MPN
- 2420055000
- Output Current
- 4.5A
- Output Voltage Text
- 5V DC
- Output Volt Conv Dc
- 5V DC
- Power Type
- Switch Mode
- Regulated Output
- Regulated
- Ul Approval Number
- UL60601
- Ul Approved
- Yes
- Weight
- 390g
