Mascot
3540LiFePO4 7 Cell/10A 3 step Battery Charger
Product code: PDL13540260000
Medical EN 60601-1 UL Approved
£285.23Excl. VAT, per unit£342.28 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description

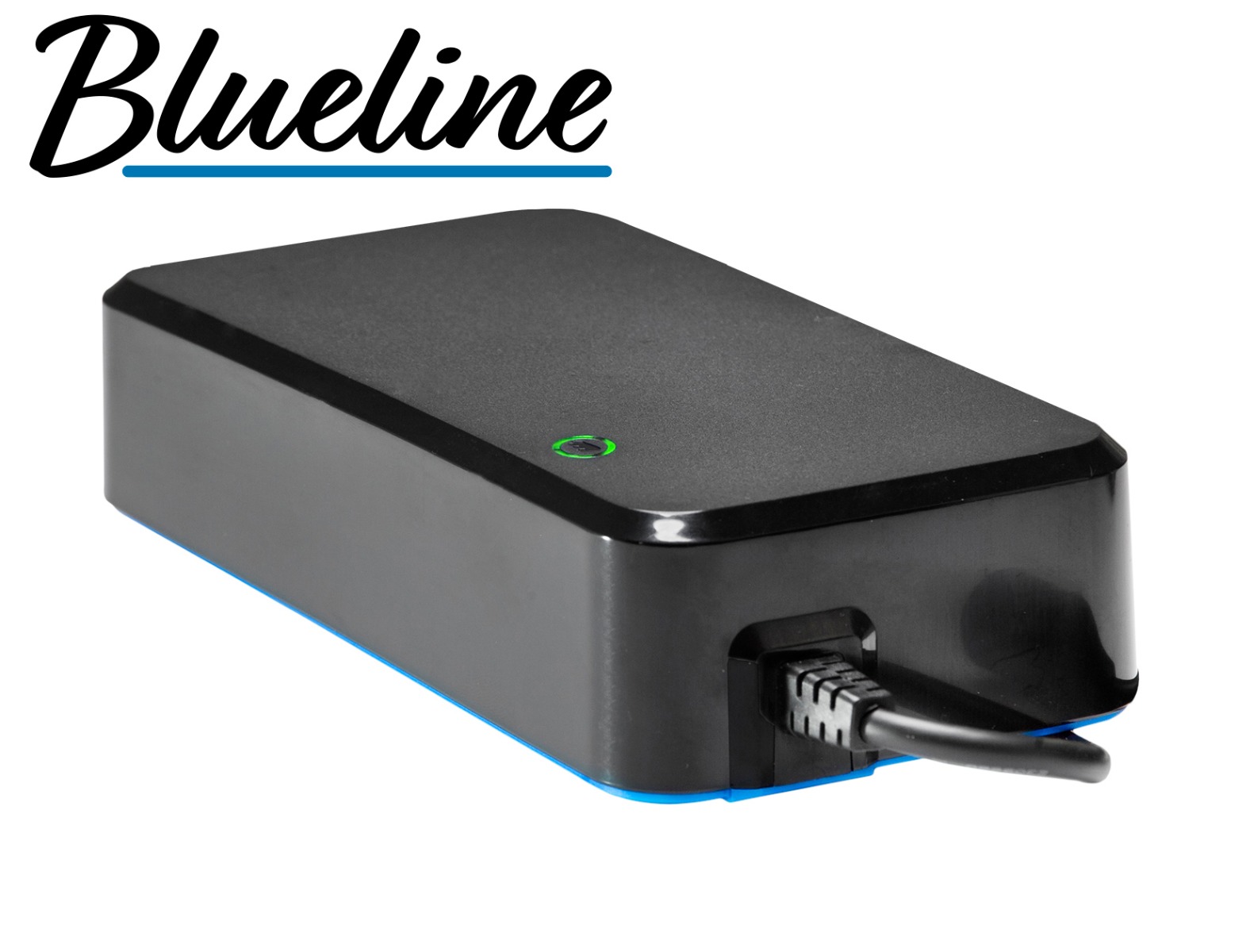

Available on request, minimum order quantity applies - please contact Customer Services to order 01628 474 324. . Mascot Blueline 3540 LiFPO4 7 Cell/10A 3-Step Battery Charger with current detection, a fixed EU Mains Lead and includes the mounting bracket.. 3-step charge control with current detection. Input voltage 198-264 VAC. 115 VAC versions available.. Fixed mains cable, 2-pin IEC 60320 available. Output terminal: cord w. open ends, XLR output plug for wheelchairs and scooters available. Wake up and low current start-up of deeply discharged batteries. Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Related accessories
Typical applications
Product Specification
- Battery Charger Type
- Desktop
- Cells Charge Current
- 7 Cell/10A
- Cells Number Select
- 7
- Charge Current
- 10A
- Charge Current Range
- 9.1A to 40A
- Charge Voltage
- 25.55V
- Chemistry
- LiFePO4
- Input Connections
- Fixed EURO plug mains lead
- Input Voltage
- 198-264V AC 47-50Hz
- Medically Certified
- Yes
- Medical Approval Number
- EN60601-1 ed3.1
- Model
- 3540LiFe
- MPN
- 3540260000
- Number Of Cells
- 7
- Ul Approval Number
- UL60601
- Ul Approved
- Yes
- Weight
- 1400g
Tested & certified to industry standards
