Mascot
4340 NiMH CHARGER 10-20 CELL 2.35A - coaxial unterminated DC cable as standard
Product code: PDL14340200000
Medical EN 60601-1 UL Approved
£87.60Excl. VAT, per unit£105.12 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description

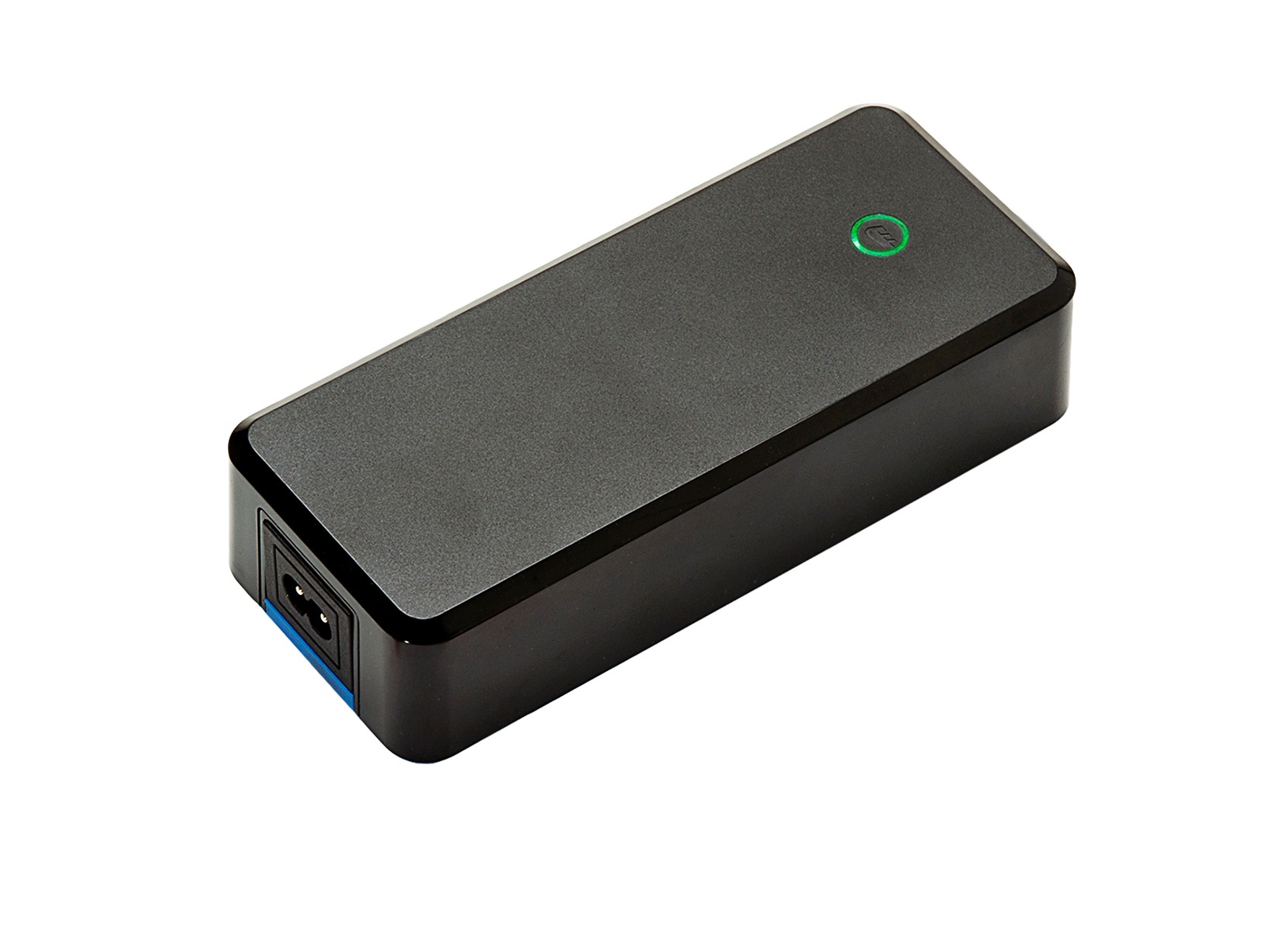

4340 NiMH CHARGER 10-20 CELL 2.35A - coaxial unterminated DC cable as standard
3-step charge control with current detection
Universal input voltage 90-264 VAC
Configurable (CBC toolkit)
2-pin IEC 60320 C8 or mains cable
Output terminal: cord w. open ends
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Related accessories
Product Specification
- Battery Charger Type
- Desktop
- Cells Charge Current
- 10-20 Cell/2.35A
- Cells Number Select
- 10-20
- Charge Current
- 2.35A
- Chemistry
- NiMH/NiCd
- Input Connections
- 2 pin IEC Socket
- Input Voltage
- 90-264 VAC 47-63Hz
- Maximum Power
- 80W
- Medically Certified
- Yes
- Medical Approval Number
- EN60601-1 ed 3.2
- Model
- 4340NiMH 10-20C
- MPN
- 4340200000
- Number Of Cells
- 10-20
- Ul Approval Number
- UL60601-1
- Ul Approved
- Yes
- Voltage
- 36V
- Weight
- 460g
