Mascot

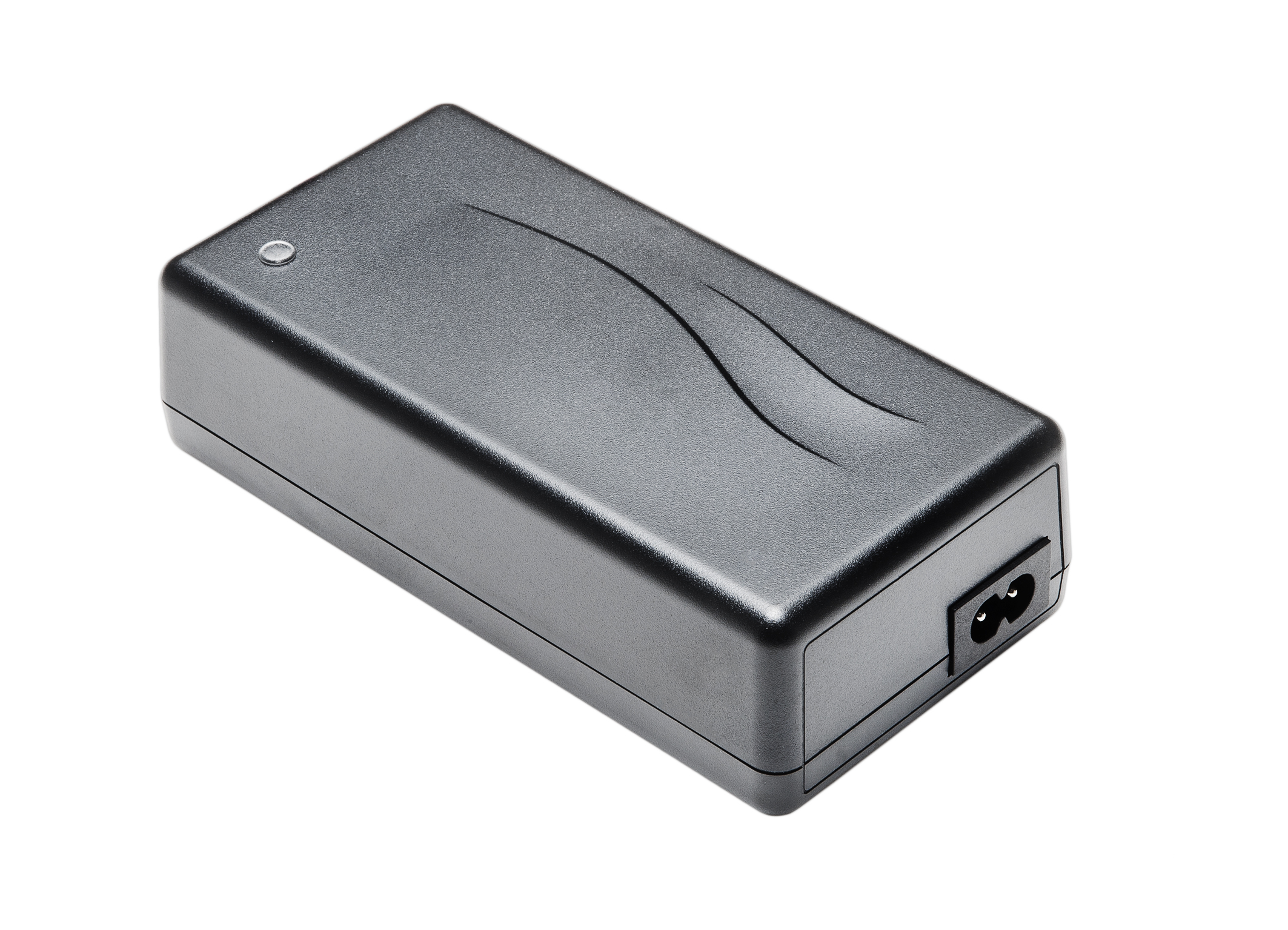

Mascot 3220 13.2V DC, 103W AC/DC Switch mode power supply with 2 pin IEC Socket
Product code: PDL13220120000
Medical EN 60601-1
£152.24Excl. VAT, per unit£182.69 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description
A desktop 106W AC/DC switch mode power supply with input voltage autodetect 115/230VAC, has short circuit protection, is medically approved to EN60601-1 the input connection is via a 3 pin IEC socket and the out put connection is the snap-lock connector for added flexibility
Related accessories
£3.713-Pin IEC Mains Lead USA
PDL1C05042
£3.503-Pin IEC Mains Lead AU
PDL1C13006
£3.963-Pin IEC Mains Lead SA
PDL1C19002
£3.463-Pin IEC Mains Lead UK
PDL1FC002
£1.28Snap-lock Connector 2.5mm Chassis
PDL13617
£1.28Snap-lock Connector 2.1mm Chassis
PDL13630
£2.82Bracket PDL1201970
PDL1201970
£2.803-Pin IEC Mains Lead EU
PDL1C03013
Product Specification
- Battery Charger Type
- Desktop
- Input Connections
- 2 pin IEC Socket
- Input Voltage
- Autodetect 115/230V AC
- Ip67
- On Request
- Maximum Power
- 103W
- Maximum Power Range
- 100W+
- Medically Certified
- Yes
- Medical Approval Number
- EN60601-1
- Model
- 3220
- MPN
- 3220120000
- Output Current
- 7.8A
- Output Voltage Text
- 13.2V DC
- Output Volt Conv Dc
- 13.2V DC
- Power Type
- Switch Mode
- Regulated Output
- Regulated
- Ul Approved
- No
- Weight
- 590g
Tested & certified to industry standards
