Mascot
Mascot 2124 24V DC 16W AC/DC Switch Mode Power Supply to Medical Standard
Product code: PDL12124000054
This product is end of life and only available whilst stocks last.
Pulsar recommend the Mascot Blueline 3823 7.5V DC, 12W AC/DC Switch mode power supply, DoE Level VI, CoC tier 2 compliant — PDL13823755000 as a suitable alternative.
Please contact us if you require further assistance.
Sale
£34.15£32.44Excl. VAT, per unit£38.93 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description

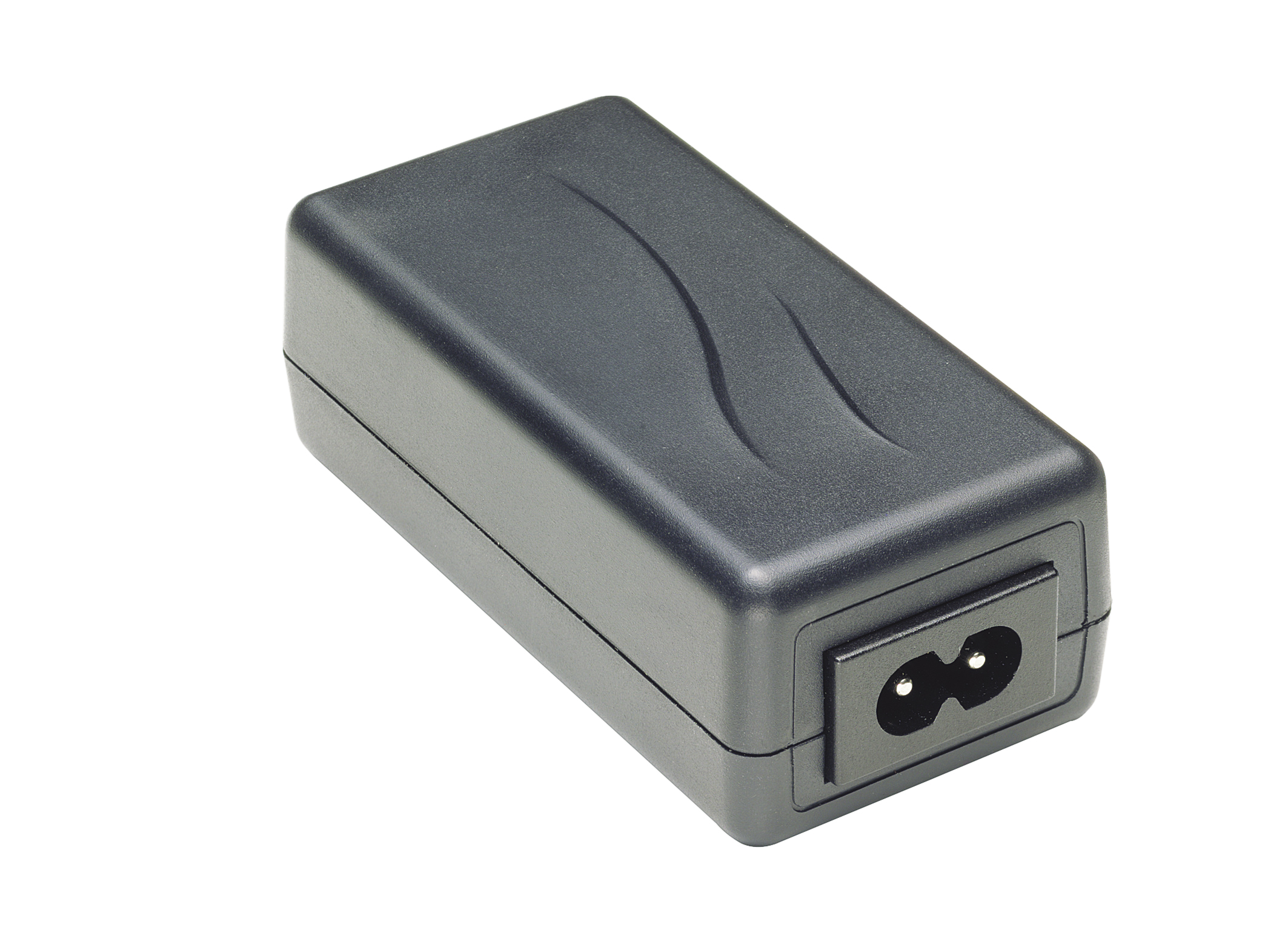

A desktop 16W AC/DC switch mode power supply with a universal input voltage(90-264VAC), short circuit proof and with over voltage protection. The input is via a 2 pin IEC Connector. The output connections are exchangeable snap-lock plugs for added flexibility.
This product is end of life and only available whilst stocks last. Pulsar recommend the Mascot Blueline 3823 7.5V DC, 12W AC/DC Switch mode power supply, DoE Level VI, CoC tier 2 compliant — PDL13823755000 as a suitable alternative. Please contact us if you require further assistance.
Related accessories
£2.782-Pin IEC Mains Lead US
PDL1C05006
£2.682-Pin IEC Mains Lead AU
PDL1C13007
£1.28Snap-lock Connector 2.5mm Chassis
PDL13617
£1.28Snap-lock Connector 2.1mm Chassis
PDL13630
£2.82Bracket PDL1202906
PDL1202906
£2.772-Pin IEC Mains Lead UK
PDL1C80002R
£4.022-Pin IEC Mains Lead Round 16Amp SA
PDL1C19003
£2.512-Pin IEC Mains Lead EU
PDL1C10016
Product Specification
- Battery Charger Type
- Desktop
- Complies With Medical Standard
- EN60601
- Input Connections
- 2 pin IEC Socket
- Input Voltage
- 90-264V AC 50/60Hz
- Maximum Power
- 16W
- Maximum Power Range
- 10-30W
- Medically Certified
- No
- Model
- 2124
- MPN
- 2124000054
- Output Current
- 0.65A
- Output Voltage Text
- 24V DC
- Output Volt Conv Dc
- 24V DC
- Power Type
- Switch Mode
- Regulated Output
- Regulated
- Ul Approved
- No
- Weight
- 115g
