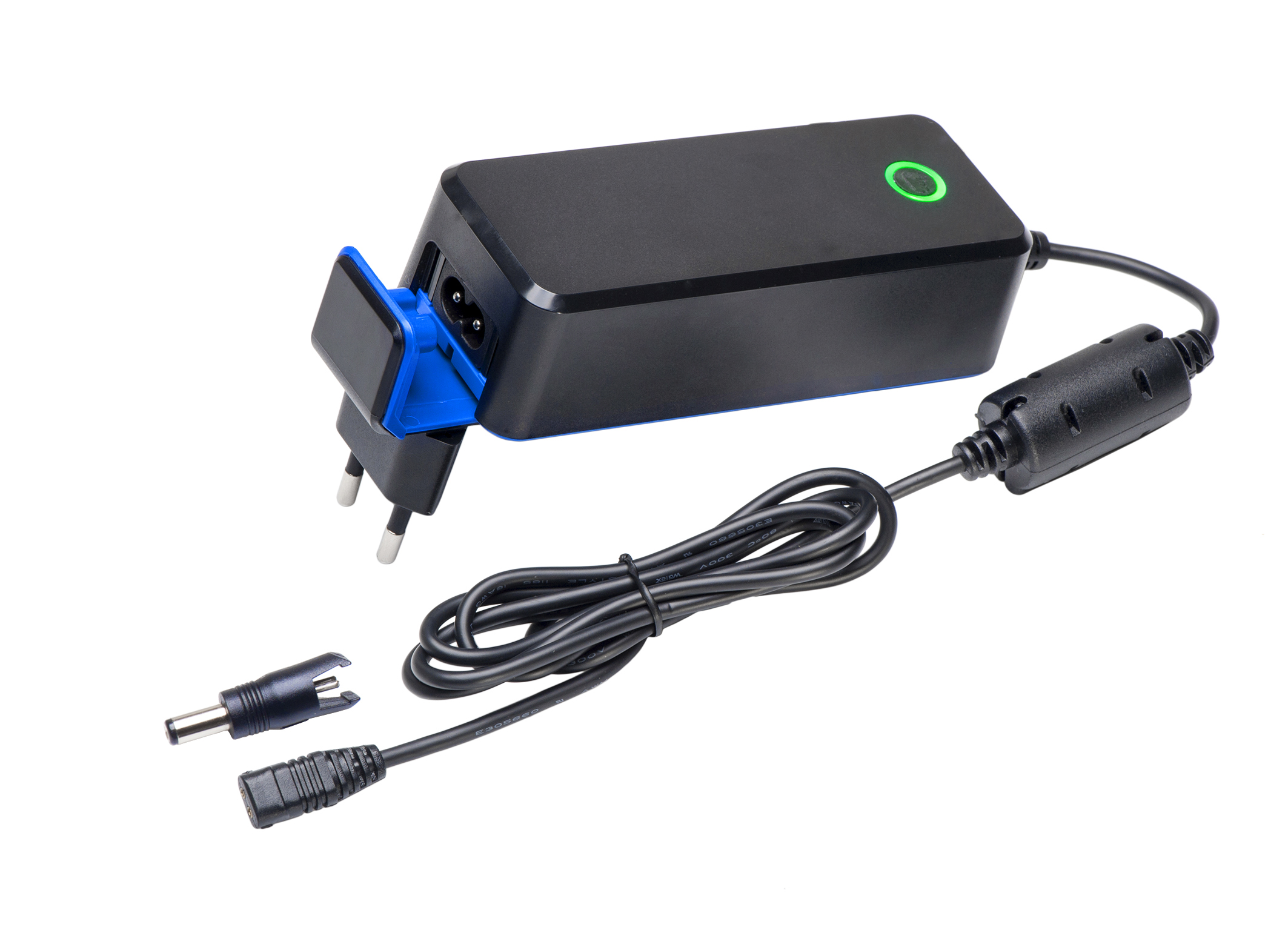

Mascot Blueline 3546 Li-Ion 5 Cell / 1.35A Switch Mode 3-Step Battery Charger
Product code: PDL13546215000
Medical EN 60601-1 UL Approved
£62.88Excl. VAT, per unit£75.46 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description
Blueline 3 step Li-Ion Battery Charger with exchangeable AC plug heads, maximum charge Current 2.7A, with current detection as charge termination, a low current start up step for deeply discharged batteries, universal input voltage(90-264VAC), protection against reverse polarity and short circuit and an LED to indicate state of charge.
Related accessories
£2.782-Pin IEC Mains Lead US
PDL1C05006
£2.512-Pin IEC Mains Lead EU
PDL1C10016
£2.772-Pin IEC Mains Lead UK
PDL1C80002R
£4.022-Pin IEC Mains Lead Round 16Amp SA
PDL1C19003
£2.682-Pin IEC Mains Lead AU
PDL1C13007
£1.28Snap-lock Connector 2.5mm Chassis
PDL13617
£1.28Snap-lock Connector 2.1mm Chassis
PDL13630
£3.09Mascot Blueline AC Plug Head UK
PDL1128200
£3.09Mascot Blueline AC Plug Head US
PDL1128100
£3.09Mascot Blueline AC Plug Head AU
PDL1128300
£3.09Mascot Blueline AC Plug Head EU
PDL1128000
£2.64Bracket PDL1127400
PDL1127400
Product video
Manufacturer walkthrough for this charger family.
Product Specification
- Battery Charger Type
- Plug-in
- Cells Charge Current
- 5 Cell/1.35A
- Cells Number Select
- 5
- Charge Current
- 1.35A
- Charge Voltage
- 21V
- Chemistry
- Li-ion
- Input Connections
- Exchangeable AC Plug Head
- Input Voltage
- 90-264 VAC 47-63Hz
- Maximum Power
- 28W
- Medically Certified
- Yes
- Medical Approval Number
- EN60601-1 3.1ed
- Model
- 3546LI
- MPN
- 3546215000
- Number Of Cells
- 5
- Ul Approval Number
- UL60601-1
- Ul Approved
- Yes
- Weight
- 220g
Tested & certified to industry standards
