Mascot

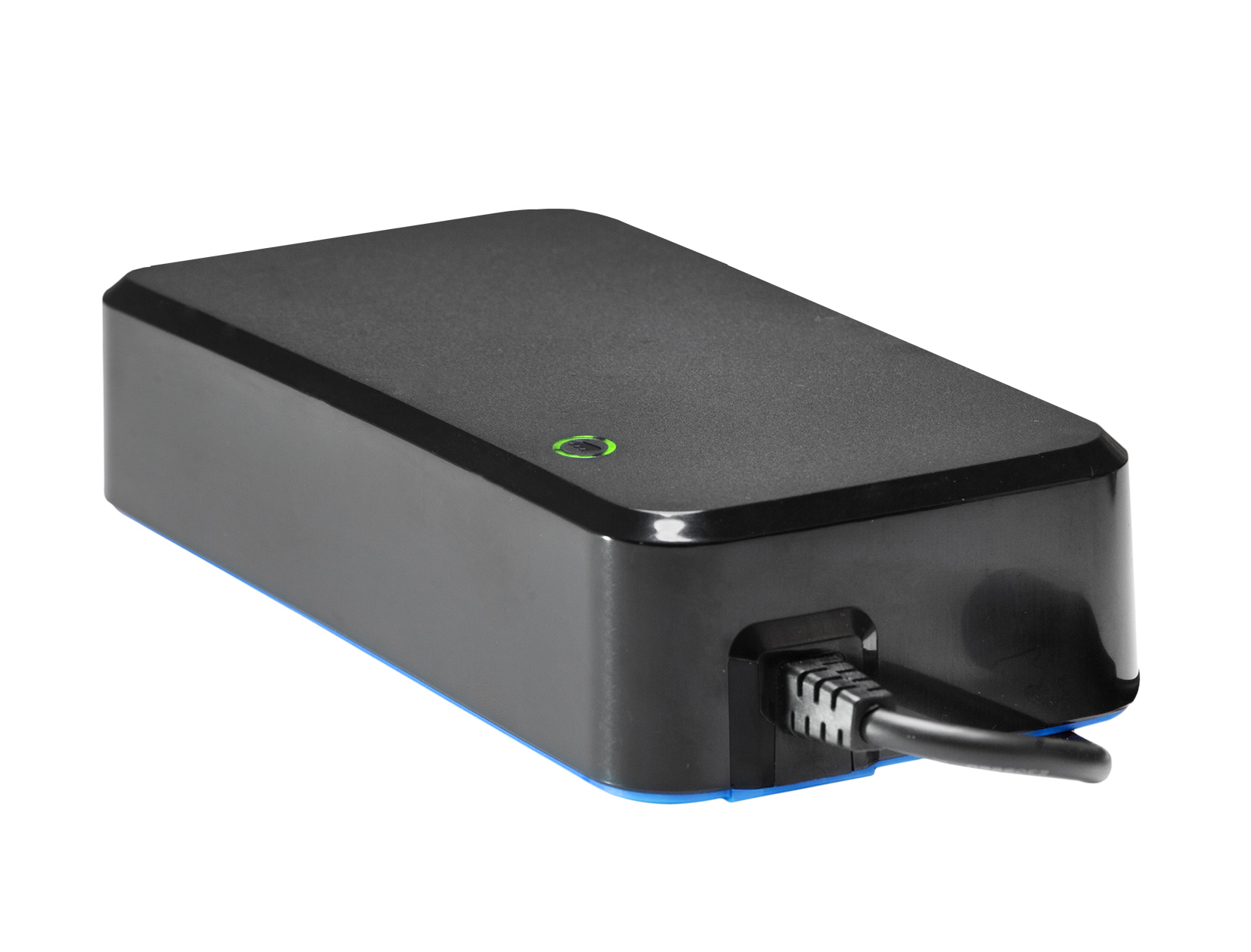

Mascot Blueline 3540LiFe 8 Cell / 10A LiFePO4 3-Step Battery Charger with current detection
Product code: PDL13540300000
£285.23Excl. VAT, per unit£342.28 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description
Blueline 3 step LiFePO4 desk top charger for charging 8 to 9 cells and with current detection as charge termination and a maximum charge current of 10A. 3-step charge control with current detection. Input voltage 198-264 VAC. 115 VAC versions available.. Fixed mains cable, 2-pin IEC 60320 available. Output terminal: cord w. open ends, XLR output plug for wheelchairs and scooters available. Wake up and low current start-up of deeply discharged batteries. Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Related accessories
Typical applications
Product Specification
- Battery Charger Type
- Desktop
- Cells Charge Current
- 8 Cell / 10A
- Cells Number Select
- 8
- Charge Current
- 10A
- Charge Voltage
- 29.2V
- Chemistry
- LiFePO4
- Input Connections
- Fixed EU Mains Lead
- Input Voltage
- 198-264 VAC 47-50Hz
- Maximum Power
- 292W
- Medically Certified
- No
- Model
- 3540LiFe
- MPN
- 3540300000
- Number Of Cells
- 8
- Ul Approved
- No
- Weight
- 1.4Kg
Tested & certified to industry standards
