Mascot

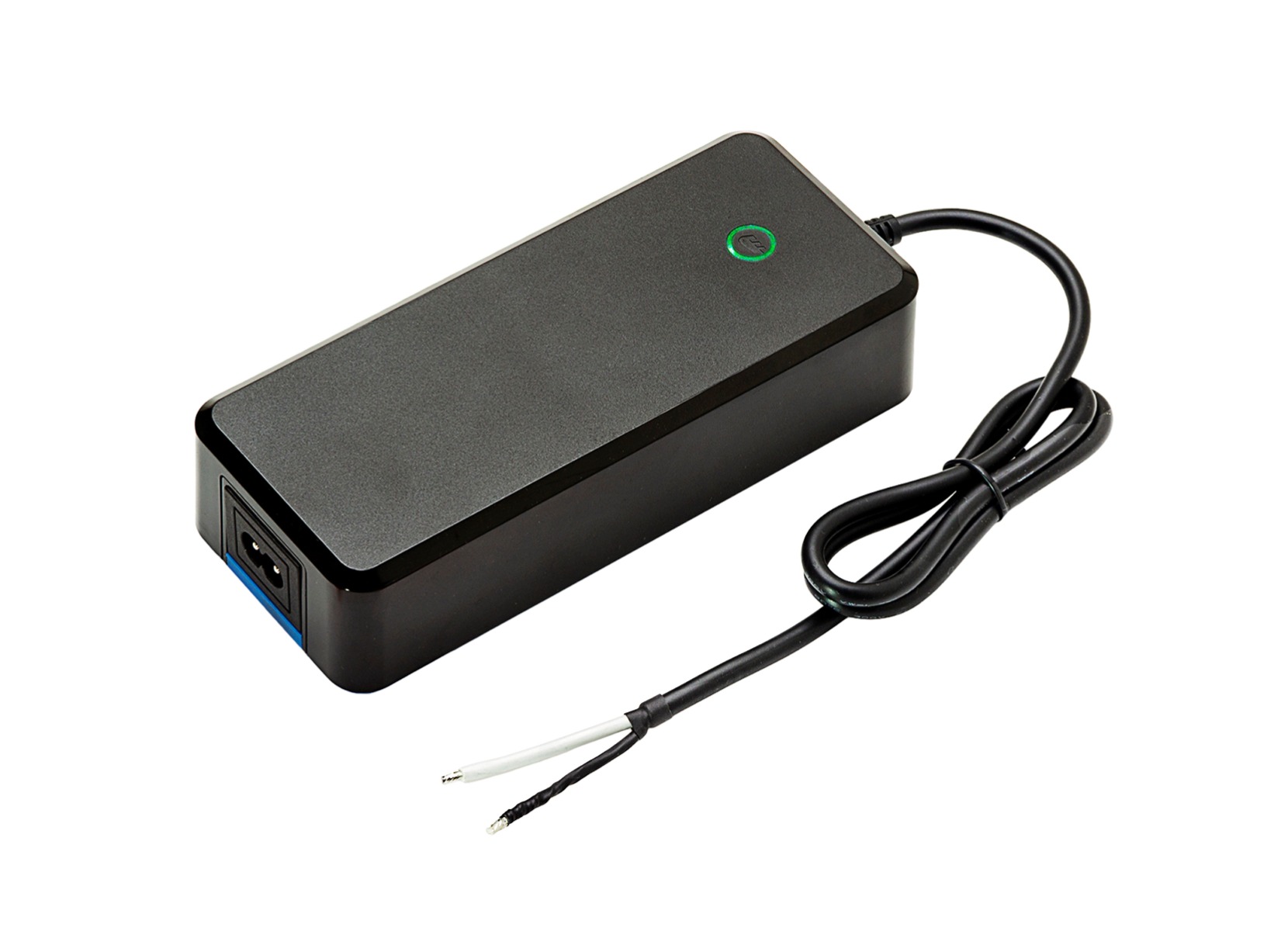

4340 LiFePO4 Charger, 90-264VAC, 16 cell, 1.35A, 2-pin IEC 320, current detection and unterminated output leads
Product code: PDL14340580000
Medical EN 60601-1 UL Approved
£87.60Excl. VAT, per unit£105.12 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description
Mascot 4340 LiFePO4 Charger, 90-264VAC, 16 cell, 1.35A, 2-pin IEC 320, Output cable with open ends
3-step charge control with current detection
Universal input voltage 90-264 VAC
Configurable (CBC toolkit)
2-pin IEC 60320 C8 or mains cable
Output terminal: cord w. open ends
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Related accessories
Product video
Manufacturer walkthrough for this charger family.
Product Specification
- Battery Charger Type
- Desktop
- Cells Charge Current
- 16 Cell/1.35A
- Cells Number Select
- 16
- Charge Current
- 1.35A
- Chemistry
- LiFePO4
- Input Connections
- 2 pin IEC Socket
- Input Voltage
- 90-264 VAC 47-63Hz
- Maximum Power
- 80W
- Medically Certified
- Yes
- Medical Approval Number
- EN60601-1 ed 3.2
- Model
- 4340LiFePO
- MPN
- 4340580000
- Number Of Cells
- 16
- Ul Approval Number
- UL60601-1
- Ul Approved
- Yes
- Voltage
- 48V
- Weight
- 460g
Tested & certified to industry standards
Related lithium-ion phosphate (lifepo4) battery chargers
3540LiFePO4 16 Cell/5A 3 step Battery Charger
£285.23 + VAT£342.28 Inc. VAT
3540LiFePO4 7 Cell/10A 3 step Battery Charger
£285.23 + VAT£342.28 Inc. VAT
3540LiFePO4 9 Cell/9A 3 step Battery Charger
£285.23 + VAT£342.28 Inc. VAT
4040 LiFePO4 Charger, 90-264VAC, 16 cell, 2.0A, 2-pin IEC 320, Output cable with open ends
£191.29 + VAT£229.55 Inc. VAT
4040 LiFePO4 Charger, 90-264VAC, 4 cell, 8.0A, 2-pin IEC 320, Output cable with open ends
£191.29 + VAT£229.55 Inc. VAT

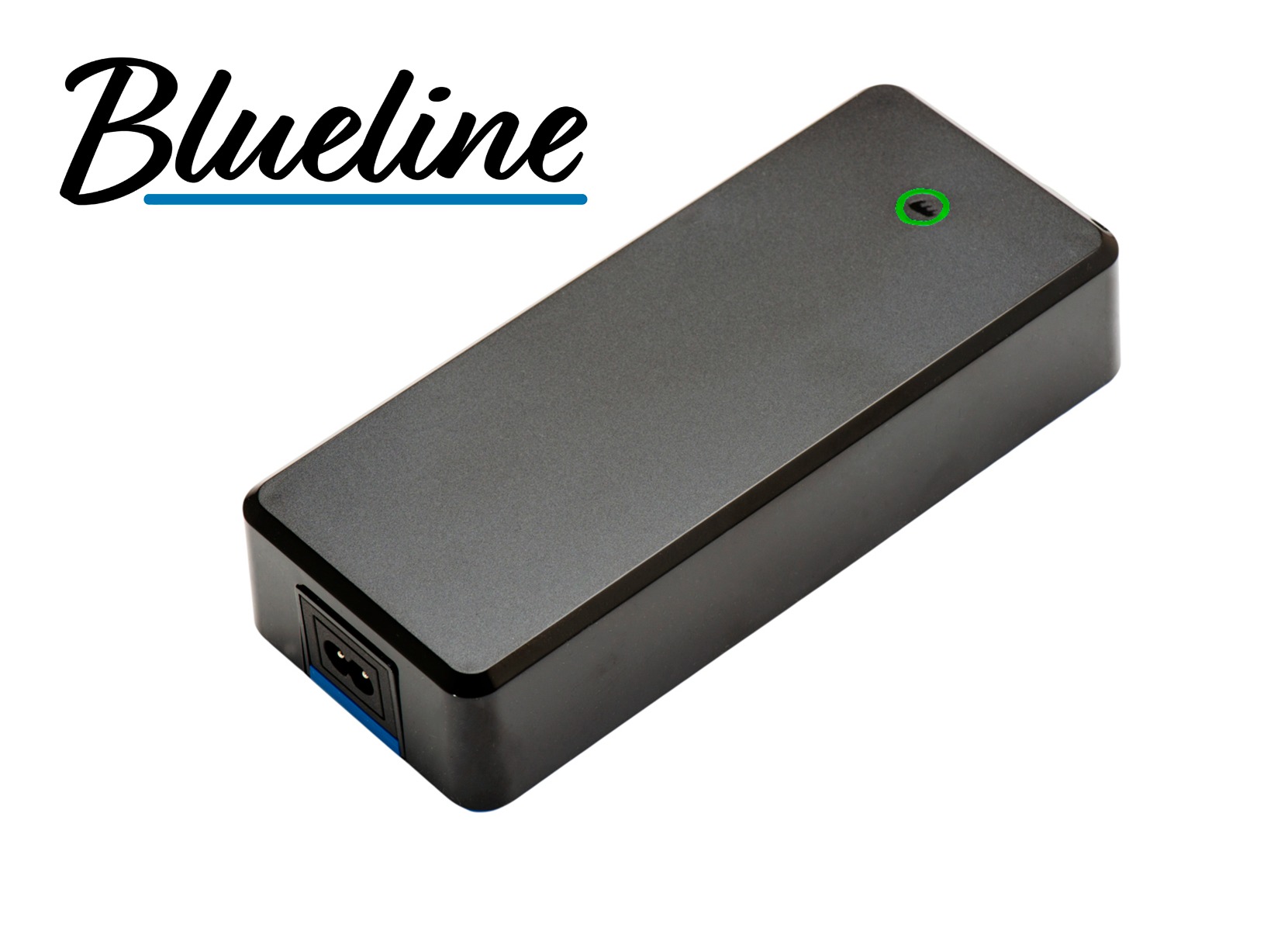

4040 LiFePO4 Charger, 90-264VAC, 8 cell, 4.0A, 2-pin IEC 320, Output cable with open ends
