Mascot

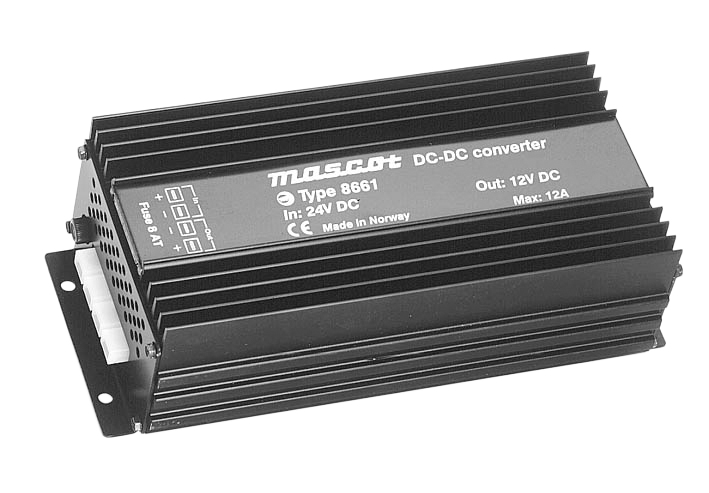

Mascot 8661 160W 24V/12V Switch mode DC/DC converter with electrical separation, Unregulated output
Product code: PDL18661241200
This product is end of life and only available whilst stocks last.
Pulsar recommend the Mascot 9260 158W 24V/11.5-14.5V Switch mode DC/DC converter with electrical separation and Regulated output — PDL19260241200 as a suitable alternative.
Please contact us if you require further assistance.
Electrically Isolated
£131.78Excl. VAT, per unit£158.14 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description
A Switch mode DC/DC converter with an unregulated output, the input electrically separated from the output and Maximum power of 160W with the input protected against reverse Polarity with an 8 A fuse and the output with overvoltage, short circuit and thermal protection. The converter is E marked to the vehicle directive ref. (95/54/EC).
This product is end of life and only available whilst stocks last. Pulsar recommend the Mascot 9260 158W 24V/11.5-14.5V Switch mode DC/DC converter with electrical separation and Regulated output — PDL19260241200 as a suitable alternative. Please contact us if you require further assistance.
Product Specification
- Ce E Marked
- E Marked ( 95/54/EC)
- Continuous Load Current
- 12A
- Electrical Separation
- Yes
- Input Terminals Conv
- 6.3mm Push on
- Input Voltage Conv Dc
- 24 VDC
- Input Voltage
- 20-32V DC
- Maximum Power
- 160W
- Maximum Power Range
- 160W
- Model
- 8661
- MPN
- 8661241200
- Output Terminals
- 6.3mm Push on
- Output Voltage Text
- 12V DC
- Output Volt Conv Dc
- 12V DC
- Power Type
- Switch Mode
- Regulated Output
- Unregulated
- Weight
- 1Kg
Tested & certified to industry standards
