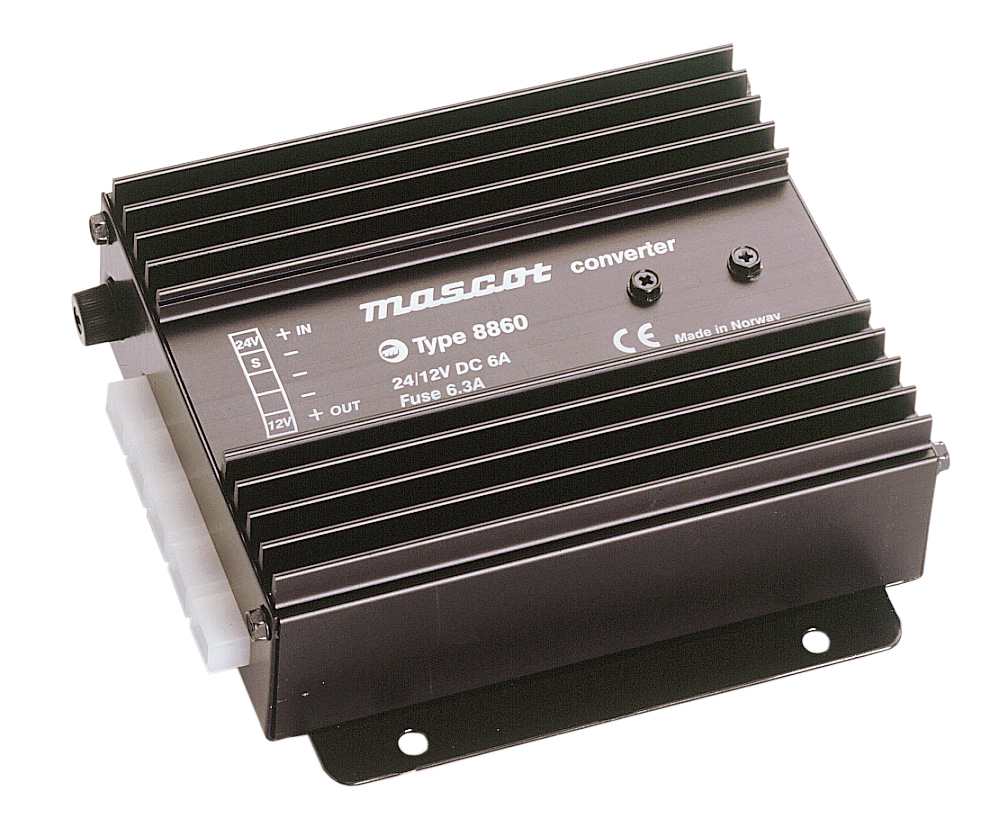

Mascot 8860 75W 24V/13.3V Switch mode DC/DC converter with a Regulated output
Product code: PDL18860241200
£69.65Excl. VAT, per unit£83.58 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description
A Switch mode DC/DC converter with a regulated output, the Maximum power of 75W with protection including reverse Voltage, overvoltage, short circuit and thermal protection. The converter is CE and E marked. This converter is specifically for mobile telephone applications.
Product Specification
- Ce E Marked
- CE and E Marked
- Continuous Load Current
- 6A
- Electrical Separation
- No
- Input Terminals Conv
- 6.3mm Push on
- Input Voltage Conv Dc
- 24 VDC
- Input Voltage
- 22-32V DC
- Maximum Power
- 75W
- Maximum Power Range
- 75W
- Model
- 8860
- MPN
- 8860241200
- Output Terminals
- 6.3mm Push on
- Output Voltage Text
- 13.3V DC
- Output Volt Conv Dc
- 13.3V DC
- Power Type
- Switch Mode
- Regulated Output
- Regulated
- Weight
- 400g
Tested & certified to industry standards
