Mascot

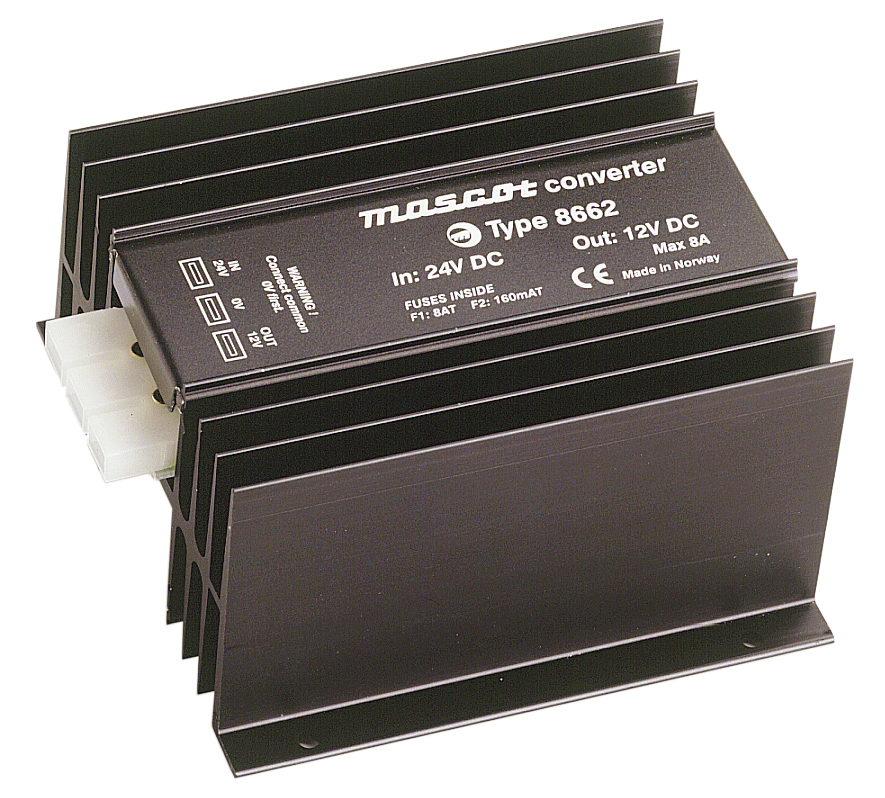

Mascot 8662 80W 24V/13.5V Linear DC/DC converter with regulated output
Product code: PDL18662241200
£55.36Excl. VAT, per unit£66.43 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description
A Linear DC/DC converter with a regulated output and Maximum power of 80W with the input protected against reverse Polarity with an 8A fuse and the output with overvoltage protection. The converter is CE and E marked and specially designed for car stereo equipment.
Typical applications
Product Specification
- Ce E Marked
- CE and E Marked
- Continuous Load Current
- 6A
- Electrical Separation
- No
- Input Terminals Conv
- 6.3mm Push on
- Input Voltage Conv Dc
- 24 VDC
- Input Voltage
- 20-32V DC
- Maximum Power
- 80W
- Maximum Power Range
- 80W
- Model
- 8662
- MPN
- 8662241200
- Output Terminals
- 6.3mm Push on
- Output Voltage Text
- 13.5V DC
- Output Volt Conv Dc
- 13.5V DC
- Power Type
- Linear
- Regulated Output
- Regulated
- Weight
- 500g
Tested & certified to industry standards
