Mascot

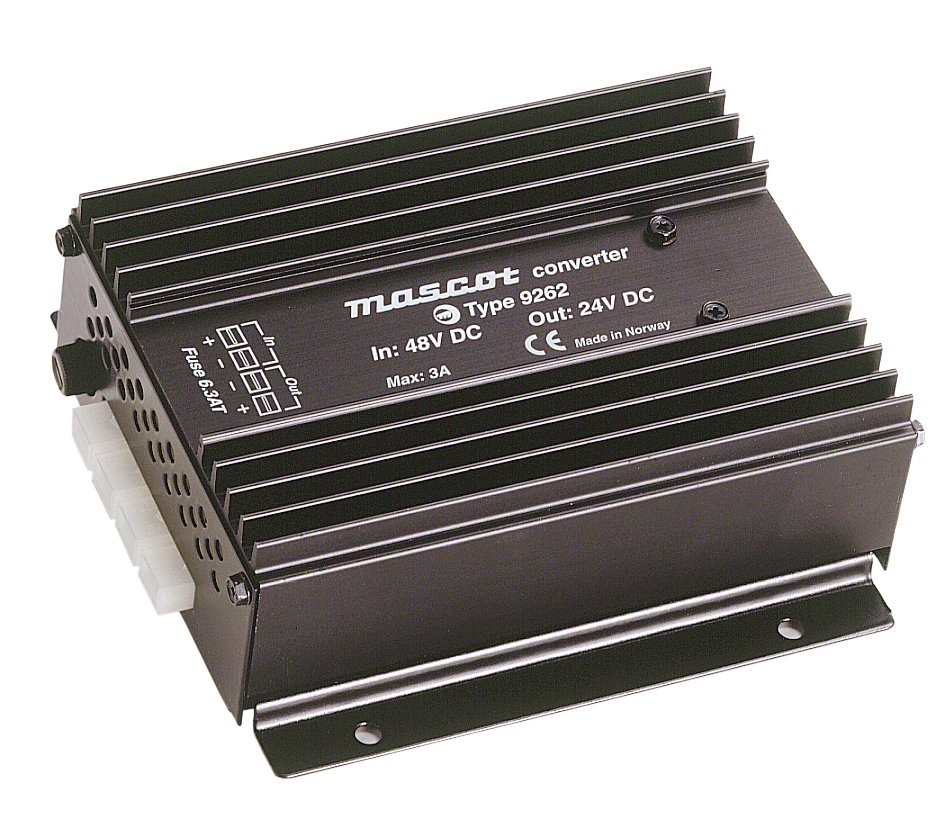

Mascot 9262 81W 48V/24V Switch mode DC/DC converter with electrical separation and Regulated output
Product code: PDL19262482400
Electrically Isolated
£105.31Excl. VAT, per unit£126.37 Inc. VAT
In stock
Min order 1 · Suitable for new designs
UK shipping £8.00 Inc. VATFlat rate to mainland UK and Northern Ireland (~0.00 kg). Channel Islands, Isle of Man, Republic of Ireland and international orders need a shipping quote.
Ordering 5+ units? Volume discounts available.
- 1-year manufacturer warranty
- Technical support: 01189 795319
Description
A Switch mode DC/DC converter with a regulated output, the input electrically separated from the output and Maximum power of 81W with protection including reverse Voltage, overvoltage, short circuit and thermal protection. The converter switches off at voltages over or under the specified range. The converter is CE and E marked. This converter is specifically designed for electric forklift trucks and other electromotive applications where high transients may occur.
Product Specification
- Ce E Marked
- CE and E Marked
- Continuous Load Current
- 3A
- Electrical Separation
- Yes
- Input Terminals Conv
- 6.3mm Push on
- Input Voltage Conv Dc
- 48 VDC
- Input Voltage
- 40-64V DC
- Maximum Power
- 81W
- Maximum Power Range
- 81W
- Model
- 9262
- MPN
- 9262482400
- Output Terminals
- 6.3mm Push on
- Output Voltage Text
- 24V DC
- Output Volt Conv Dc
- 24V DC
- Power Type
- Switch Mode
- Regulated Output
- Regulated
- Weight
- 600g
Tested & certified to industry standards
